Export Rhino® to IFC4 or IFC2x3

IFC Export writes the selected objects to an IFC file, with their geometry, storeys, types, materials, property sets and classifications.

Export a model

1

Select

Select the objects to export. Curves and points are not exported to IFC.

2

Click IFC Export

Click IFC Export on the panel.

3

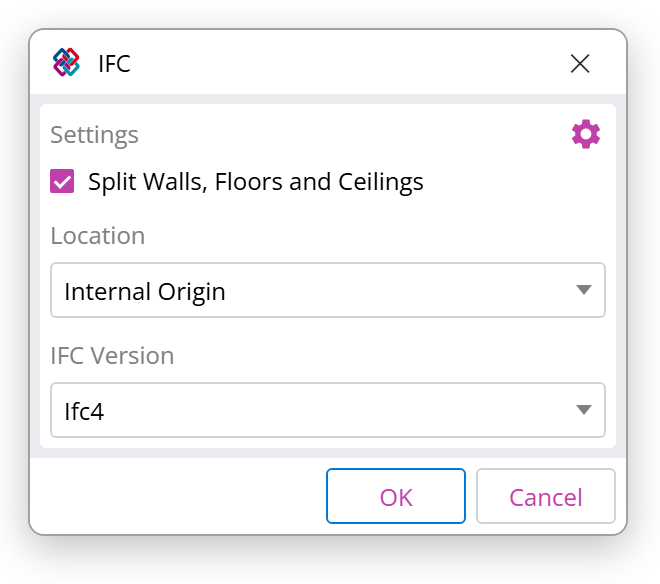

Choose the options

Option	What it does
Gear	Opens the IFC settings
Split Walls, Floors and Ceilings	Exports each object in a wall, floor or ceiling family as a separate element. Off by default.
Location	Internal Origin, or a named CPlane to use as the IFC origin
IFC Version	Ifc4 (default) or Ifc2X3

4

Save

Choose a file name and folder, and save.

Tips

• Split Walls, Floors and Ceilings helps when one family holds several walls or slabs. Other tools can then select, measure and quantify each one.

• Use a named CPlane as Location to align the IFC with survey data or other consultants' models.

• Pick Ifc2X3 only when the receiving tool cannot read IFC4.

• Blocks are exported once as a type and placed as elements, which keeps files small.

The document units must be metres, centimetres, millimetres, feet or inches. Other units stop the export.

Grasshopper

Use the Export IFC component to export from a Grasshopper definition. See Grasshopper.
